NAVAL SYSTEMS

Engineering Maritime Combat Excellence

From mine counter measure solutions to multi-mission autonomous naval systems and universal rocket launching systems, NIBE's naval portfolio extends precision, autonomy and strike power across the maritime domain.

Mine Counter Measure Solutions Autonomous Surface Vessel SuryaAstra - Ship Mounted Universal Rocket Launcher Containerised Towed Sonar Naval Ammunitions Satellite Based Intelligence

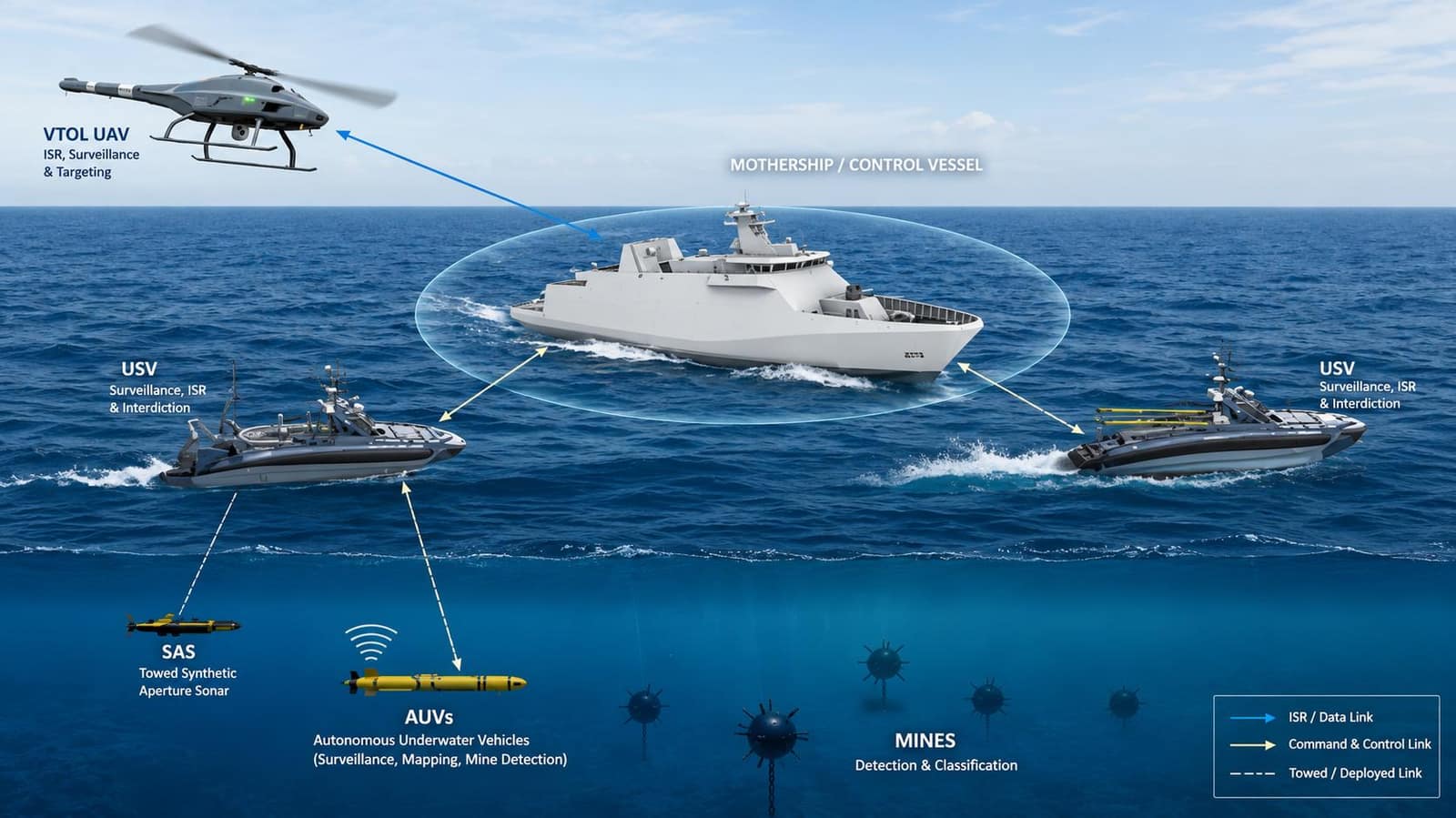

Mine Counter Measure Suite
NAVAL SYSTEM

Mine Counter Measure (MCM) Suite

An integrated naval solution designed for detection, classification, identification and neutralization of underwater mines using autonomous platforms, advanced sonar systems and intelligent mission control technologies.

Suite Components

Mission Control System (MCS)

Provides centralised command, control and mission planning by
co-ordinating all autonomous platforms and sensors throughout the mission.

Autonomous Surface Vessel (USV)

Performs autonomous mine hunting operations while keeping personnel and naval platforms away from hazardous areas.

Heavy Weight Autonomous Underwater Vehicle (HWAUV)

Detects, classifies and identifies underwater mines using advanced navigation and sensing technologies.

Synthetic Aperture Sonar

Produces ultra-high-resolution seabed imagery for precise mine detection over large underwater search areas.

Mine Identification & Disposal System

Remotely operated system used to visually identify and safely neutralize underwater explosive threats.

Launch & Recovery System

Enables safe deployment and recovery of USVs, AUVs and sonar payloads for efficient maritime operations.

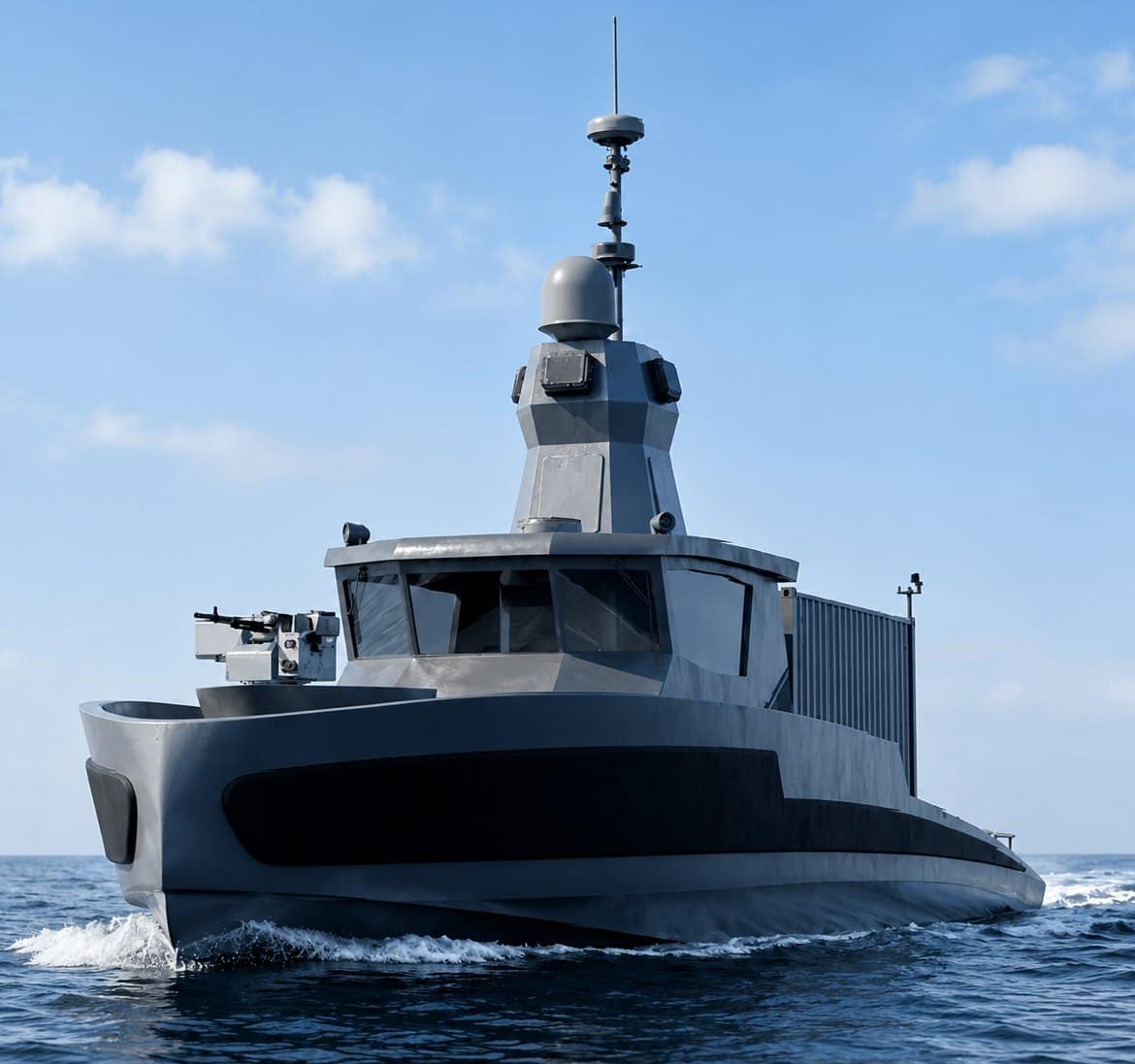

Seagull Unmanned Surface Vessel
NAVAL SYSTEM

Autonomous Surface Vessel

Multi-mission autonomous naval platform

✦ Fully autonomous multi-mission platform designed for maritime warfare, integrating advanced sonar systems and modular payloads for versatile maritime operations.
✦ Designed for extended endurance — operates continuously for more than four days at sea.
✦ Constructed from lightweight composites and aluminum materials as a 12-metre vessel, easily deployable from Ports or Motherships.
✦ Transportable within a standard 40-feet container while meeting international maritime and military specifications.

Multi-Mission Capabilities

Multi-Mission Operations

MCM, ASW, Maritime Security including ISR, Hydrography and more.

Mission Payloads

Modular and switchable payload suites with advanced sonar systems.

Autonomous Endurance

Operates continuously for over four days without crew.

Rapid Deployment

Deployable from Port or Mothership and transportable in a 40 ft container.

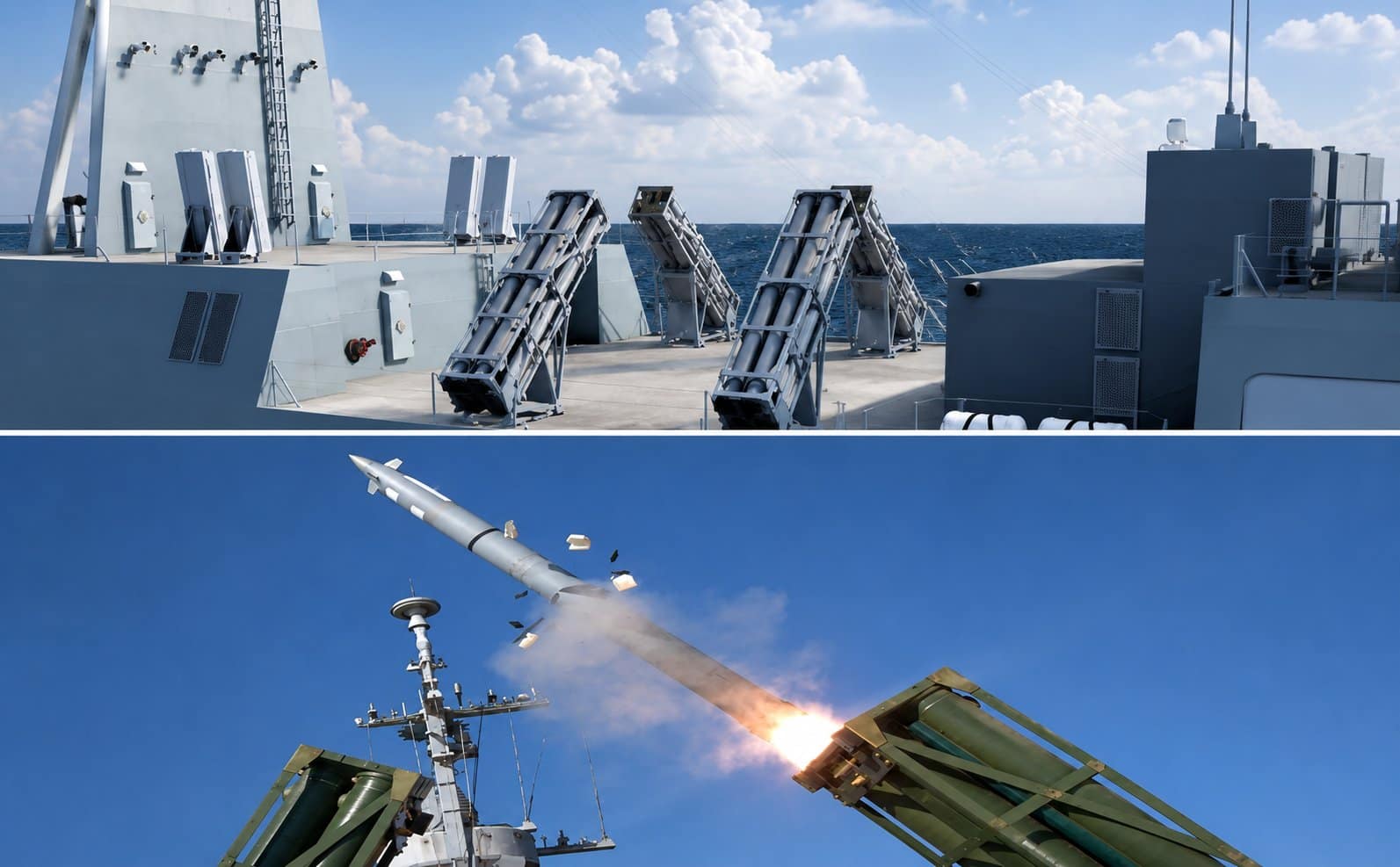

TRIGON Universal Rocket Launcher
NAVAL SYSTEM

SuryaAstra - Ship Mounted Universal Rocket Launcher System

A universal multi-mission rocket launcher engineered for long-range precision strike missions across land and maritime domains while integrating seamlessly with modern command and control systems.

Launcher Capabilities

Multi-Mission Launcher

Supports multiple missile types with range varying from 150km to 300km and future munitions through interchangeable Launch Pod Containers (LPCs).

Long-Range Precision Strike

Engagement ranges up to 300 km with optimized trajectories for exceptional precision and battlefield effectiveness.

Dual-Domain Engagement

Effective against both land and maritime targets, from hardened ground assets to fast-moving vessels.

C2 Integration

Fully compatible with customer command and control systems for seamless operational integration.

Maximum Flexibility

One launcher for multiple missions, eliminating the need for dedicated land and naval strike systems.

Force Multiplication

Enhances naval strike capability while leveraging the proven land-based ecosystem.

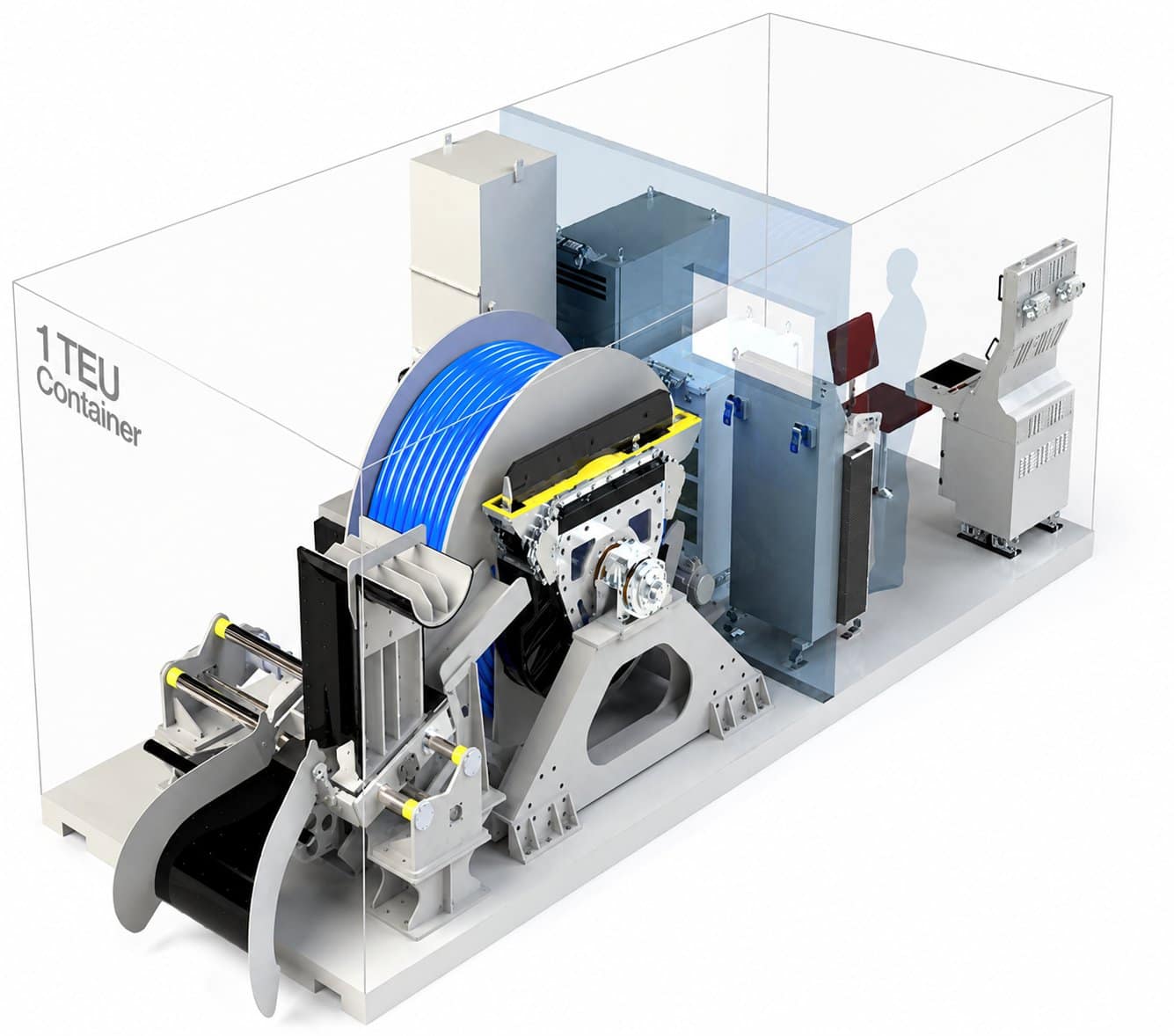

TRAPS Containerised
NAVAL SYSTEM

Containerised Sonar

Towed Reelable Active Passive Sonar System

A compact containerised towed array sonar solution integrating winch handling, sonar electronics, operator consoles and remote control capabilities into a single One TEU container for rapid deployment and efficient maritime surveillance operations.

System Configuration

  • Sonar assembly stowed on the winch & handling system
  • Complete system containerised inside one TEU container
  • Winch & handling system with remote control capability
  • Integrated sonar electronics rack with local RecView subsystem
  • Power amplifier
  • Dedicated sonar operator unit
  • RecView subsystem with remote WHS control

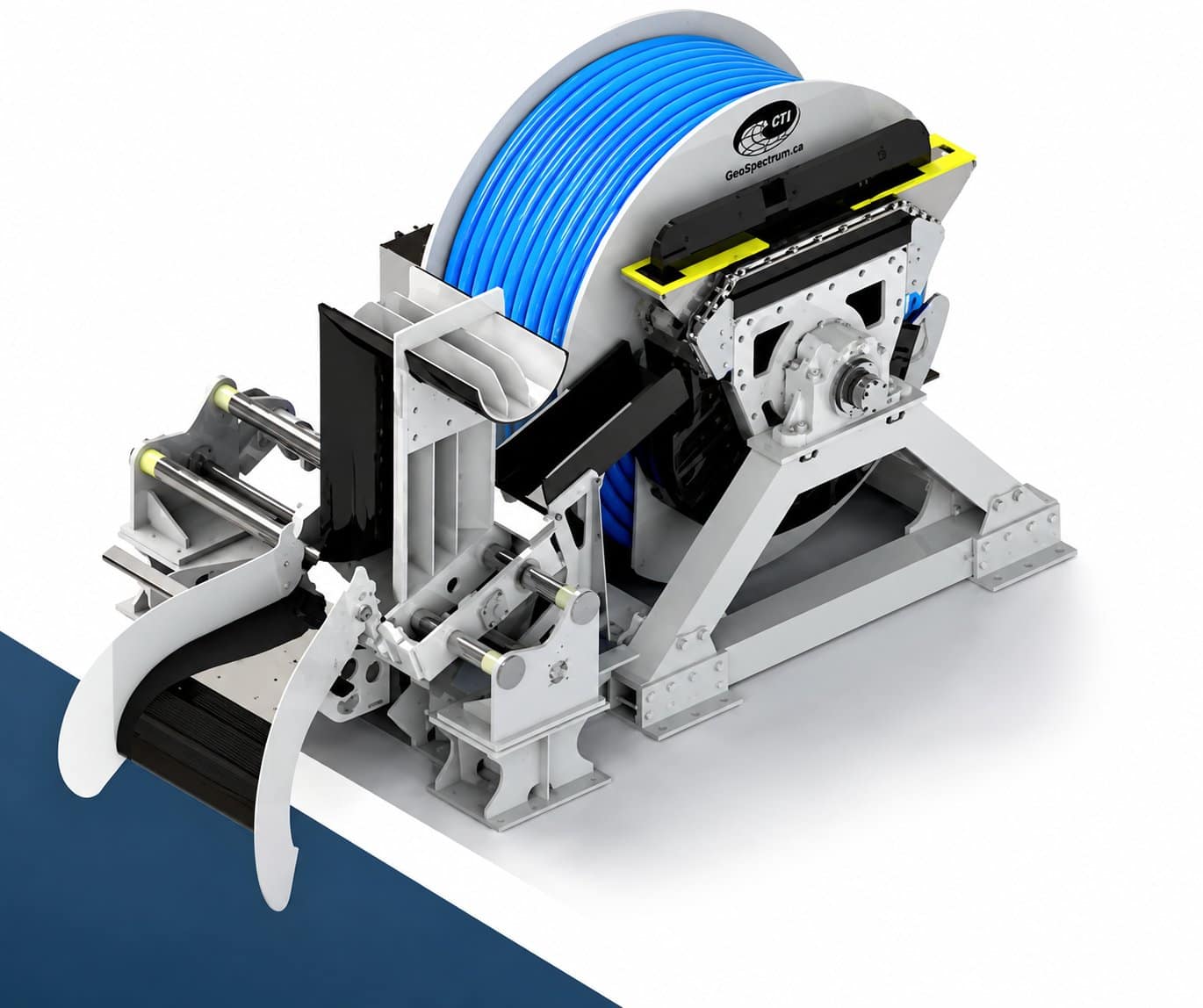

TRAPS Winch Handling System Winch & Handling System

Technical Specifications

11.5 t System Weight
13.86 m² Footprint
150 km Range — Exceeds 2nd CZ
VLF–HF Active Frequencies
5–5500 Hz Passive Capability
10–300 m Operating Depth
Sea State 6 Deployment / Recovery Limit
No AOB In-Line Tow — No Active Over-Boarding System Required

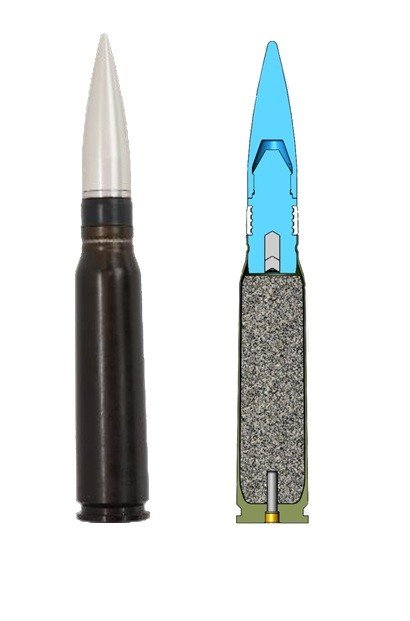

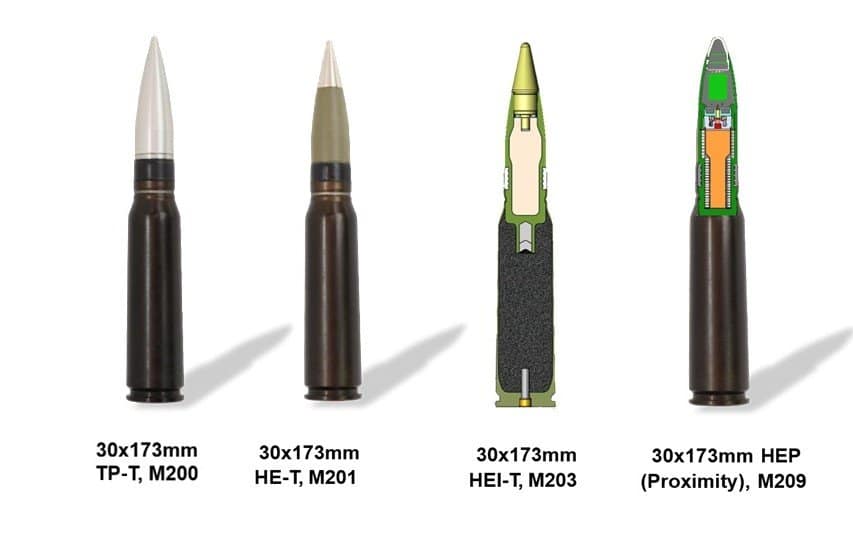

30x173mm TP-T M200
NAVAL AMMUNITION

30x173mm TP-T, M200

Training Practice – Tracer Ammunition

The 30x173mm TP-T M200 training ammunition is fully compatible with all 30x173mm NATO standard cannons, providing reliable ballistic performance for operational training and qualification exercises while replicating live ammunition characteristics.

Technical Characteristics

290 mm Cartridge Length
670 g Cartridge Weight
139 mm Projectile Length
360 g Projectile Weight
160 g Propellant Weight
1100 m/s Muzzle Velocity
400 MPa Chamber Pressure
0.4 × 0.4 mils Accuracy @ 1000 m
-46°C to +63°C Firing Temperature
-54°C to +71°C Storage Temperature

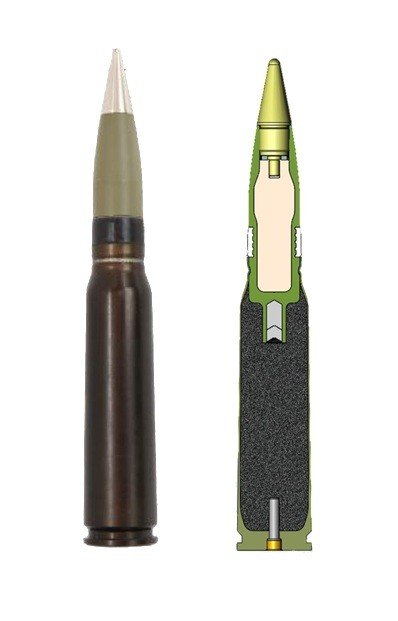

30x173mm HE-T M201
NAVAL AMMUNITION

30x173mm HE-T, M201

High Explosive – Tracer Ammunition

The 30x173mm HE-T M201 ammunition is fully compatible with all 30x173mm NATO standard cannons, delivering superior high-explosive effects against light armoured vehicles, soft targets and battlefield fortifications while maintaining excellent ballistic accuracy.

Technical Characteristics

290 mm Cartridge Length
690 g Cartridge Weight
166 mm Projectile Length
380 g Projectile Weight
40 g HE (A7) Charge
160 g Propellant Weight
1100 m/s Muzzle Velocity
400 MPa Chamber Pressure
0.5 × 0.5 mils Accuracy @ 1000 m
-46°C to +63°C Firing Temperature

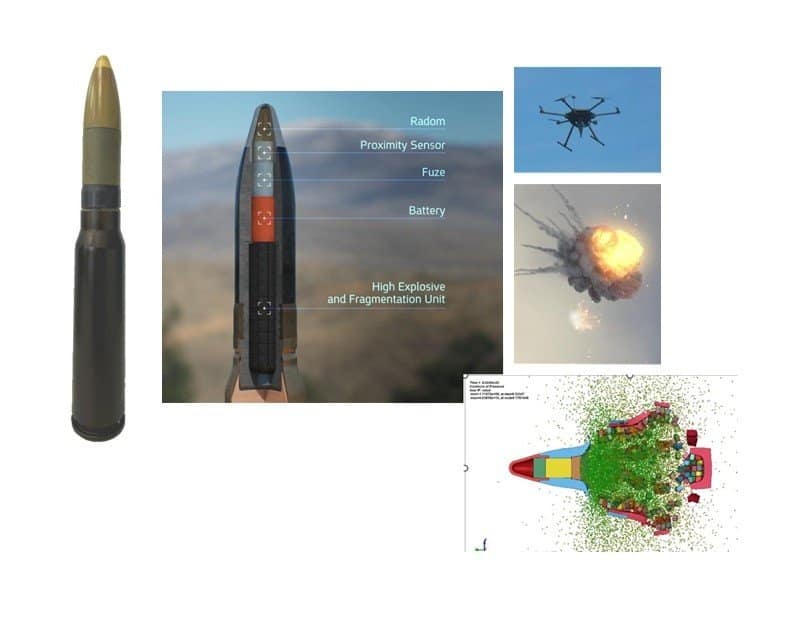

30x173mm HE-Proximity M209
NAVAL AMMUNITION

30x173mm HE-Proximity

High Explosive Proximity Ammunition

Modern battlefields are witnessing an unprecedented rise in the use of drones and unmanned aerial vehicles (UAVs), creating new threats for military and critical infrastructure protection.

The 30x173mm HE-Proximity M209 is an advanced programmable high-explosive proximity round developed for modern air-defence and counter-UAS operations.

Designed for seamless integration with modern 30mm weapon systems, the proximity ammunition delivers unmatched effectiveness against drones, UAVs and other aerial threats through precision proximity sensing and controlled fragmentation.

Threat Engagement Capability

UAVs

High-probability interception of reconnaissance and tactical UAVs.

Large Drones

Precision proximity detonation against medium and large drone platforms.

Small Drones

Highly effective against fast-moving, low-signature quadcopters and mini UAVs.

Technical Characteristics

980 m/s Muzzle Velocity
10 m/s Target Velocity
150–2000 m Effective Range
<0.6° Accuracy @1000 m
Proximity Operational Mode
>20 m Safety Distance
80 ms Operational Readiness
<5 sec Self Destruction
460 g Projectile Mass
15 Years Storage Life
-46°C to +71°C Storage Temperature
5200 bar Maximum Pressure

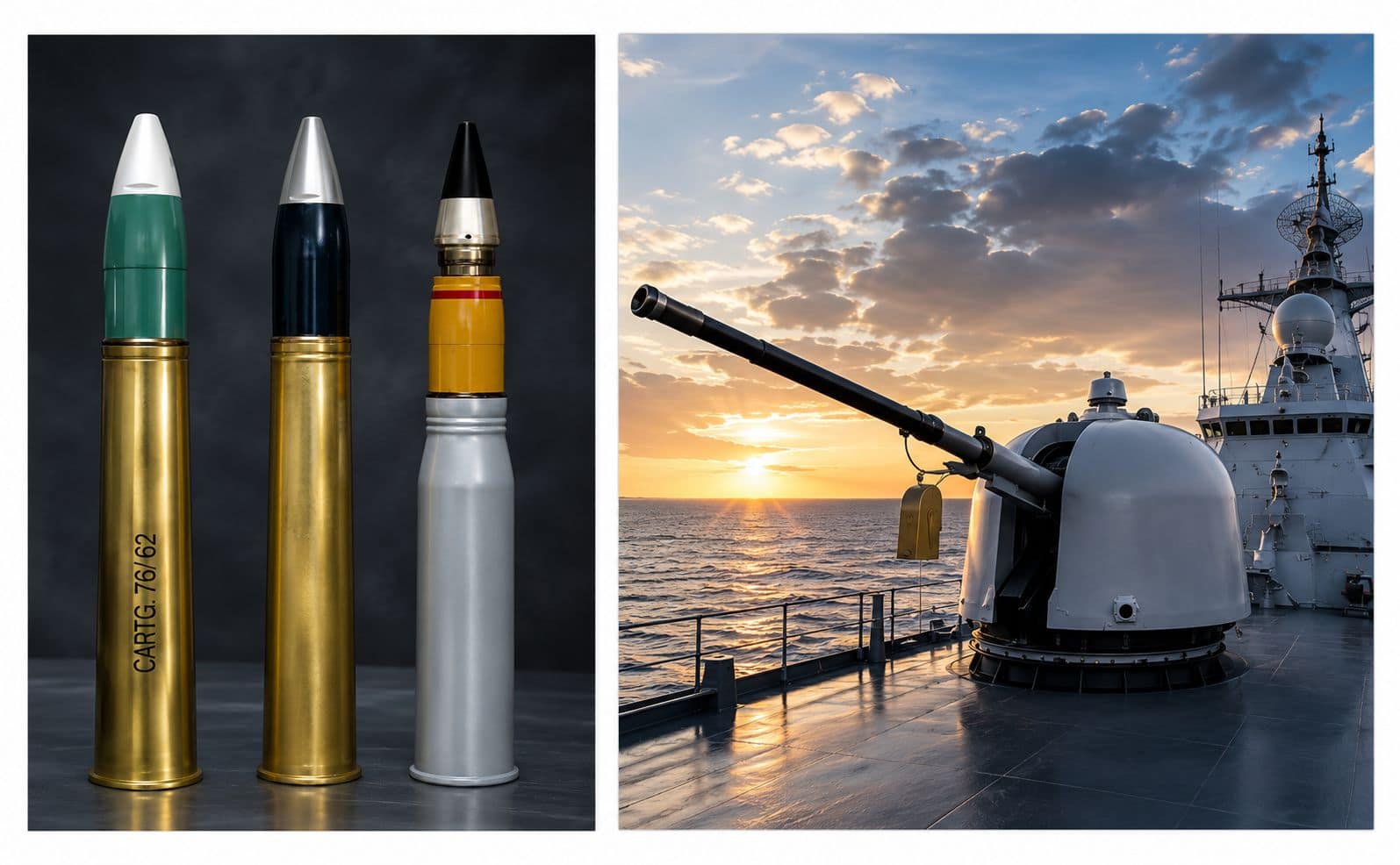

76mm HE-M77 Naval Ammunition
NAVAL SYSTEM

76mm Ammunition for OM 76/62 Guns

High-Explosive Naval Ammunition

The 76mm HE-M77 Naval Ammunition is a high-explosive round developed for the OM 76/62 naval gun system. Designed for outstanding ballistic performance, it delivers effective engagement against surface targets, naval threats and low-flying aerial targets.

Featuring a robust steel body, high-explosive filler and precision impact fuze, the round provides excellent blast and fragmentation effects while maintaining compatibility with all standard OM 76/62 naval gun systems.

Key Features

12.4 kg Complete Round Weight
6.2 kg Projectile Weight
16,200 m Maximum Range
930 m/s Muzzle Velocity
HE High Fragmentation Effect

Operational Advantages

High Accuracy

Provides exceptional accuracy against surface and maritime targets.

High Fragmentation

Powerful blast and fragmentation effects for maximum target neutralization.

Naval Compatible

Fully compatible with all OM 76/62 naval gun systems.

Mission Ready

Reliable ammunition for naval defence and coastal security missions.

SPACE SYSTEM

Satellite Based Intelligence

Optical • SAR • RF / SIGINT Intelligence
Satellite Based Intelligence

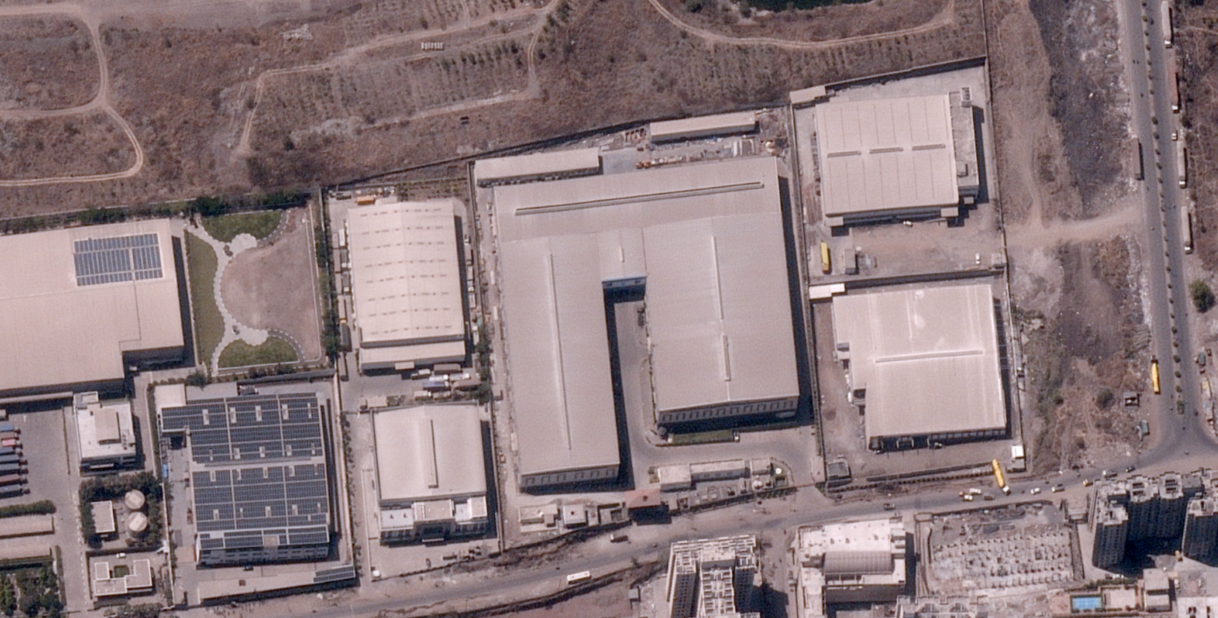

Shirdi Plant from the Satellite

Optical Intelligence

( 35 cm resolution )

The planned constellation of more than 15 satellites in inclined orbit provides continuous coverage of sovereign areas of interest. Delivering imagery with up to 35 cm resolution, the system enables precise identification of terrain, assets, and infrastructure changes. These capabilities support defence surveillance, border monitoring, urban planning, agriculture, disaster management, and advanced geospatial intelligence.

SAR Intelligence

( sub-0.5m resolution )

A constellation of 6+ Synthetic Aperture Radar (SAR) satellites provides all-weather, day-and-night imaging capabilities. Combining ultra-high resolution with wide-area coverage, the system enables persistent surveillance of borders, maritime regions, critical infrastructure, and adversary activity. With sub-0.5 metre resolution, it can detect ships, illegal fishing, dark vessels, and oil spills even during heavy cloud cover or nighttime operations.

RF / SIGINT

( 30 MHz to 18 GHz )

The RF/SIGINT constellation comprises planned clusters of three satellites, covering frequencies from 30 MHz to 18 GHz. Supporting VHF, UHF, L, S, C, X, and Ku bands, the system captures the majority of man-made radio frequency emissions. It is designed for Electronic Intelligence (ELINT), Communications Intelligence (COMINT), and Signals Intelligence (SIGINT) missions across land, naval, and airborne operational environments.
